Best Retaining Wall Types In NZ: Guide For Homeowners

Welcome to your go-to guide on retaining wall types in NZ, whether you’re leveling out a sloped section, protecting your garden from erosion, or adding structure to your landscape, the right wall makes all the difference. With New Zealand’s mix of hilly terrain, heavy rain, and shifting soil, choosing the right type isn’t just about looks, it’s about safety, durability, and function. In this post, we’ll break down the most common retaining wall types used across the country, highlight their pros and cons, and help you figure out which one fits your space, budget, and local conditions.

The most common retaining wall types in NZ include timber, concrete block, gabion, stone, keystone, and crib walls. Each type offers different benefits based on budget, landscape needs, and style preferences. Timber is affordable and ideal for small gardens, while concrete and crib walls provide long-term strength for sloped or heavy-load areas. Always check local council regulations before building.

What Is A Retaining Wall, And Why Are They Common In NZ

A retaining wall is a structure designed to hold back soil, stop erosion, and create flat areas on sloped land. It’s often used in landscaping and construction to manage changes in ground elevation and support vertical loads. In simple terms, retaining walls make sloped or unstable land more usable and safe.

You’ll commonly see retaining walls in New Zealand properties with uneven ground. Homeowners use them to level sloping yards, prevent soil from washing away, and section off garden areas. For example, a timber wall might border a raised garden bed, or a concrete wall might support the edge of a driveway built on a slope. These walls not only improve the function of outdoor spaces but also add to the property’s appearance and structure.

In NZ, retaining walls serve a much bigger purpose due to the country’s natural landscape and climate. Many areas have hilly or mountainous terrain, especially in regions like Wellington or the South Island. This makes retaining walls essential for safely building homes or driveways on sloped land.

New Zealand’s heavy rainfall is another reason retaining walls are so common. Without proper support, water can loosen soil and lead to landslides or surface erosion. A well-designed retaining wall helps redirect water and manage runoff, keeping the property stable and protected.

Lastly, NZ’s location on the Pacific Ring of Fire means it’s earthquake-prone. Retaining walls, especially those made of reinforced concrete or crib structures, are built to handle ground movement and protect surrounding areas from collapse during seismic activity.

So, what is a retaining wall NZ homeowners should choose? The right one depends on your terrain, purpose, and local conditions. But in almost every region, a retaining wall is not just helpful, it’s often necessary for safety, usability, and long-term property maintenance. That’s why understanding the retaining wall’s purpose NZ-wide is key when planning any outdoor or building project.

Key Factors To Consider Before Choosing A Type

Before you decide which retaining wall suits your property, it’s important to understand the key factors that can affect performance, cost, and compliance. Whether you’re building a simple garden wall or supporting a steep slope, making the right choice starts with knowing your ground conditions, your goals, and the legal requirements in New Zealand. Here’s what you need to consider when choosing a retaining wall in NZ.

Soil Type And Slope

Not all soil behaves the same. Clay-heavy soil holds moisture and can expand, while sandy or loose soil shifts easily. If your property has unstable or heavy soil, you’ll need a stronger wall type like concrete or crib walls. The slope of your land also plays a big role. Gentle slopes may only need a small timber wall, while steeper terrain often calls for a reinforced solution. The wrong match between soil type and wall can lead to early failure, erosion, or collapse.

Drainage And Water Flow

Poor drainage is one of the most common reasons retaining walls fail. Water build-up behind the wall increases pressure and can cause cracking or bulging. Before building, consider how water moves through your property. Does rain pool in one area? Does your yard have proper stormwater channels? Walls like gabion or crib structures offer excellent drainage, while solid walls like concrete blocks may need built-in drains or weep holes. Always factor in drainage when choosing a retaining wall in NZ to avoid costly repairs later.

Budget And Materials

Your budget will help narrow down your options quickly. Timber is usually the most affordable, while natural stone or custom concrete comes with a higher price tag. But don’t just look at upfront costs, consider long-term durability and maintenance. A cheap wall that lasts 5 years might cost more over time than a pricier wall that lasts 30 years with minimal upkeep. Material availability also varies across NZ, so get quotes from local suppliers before deciding.

Aesthetic Appeal And Property Style

Your retaining wall should complement your home’s look. Timber works well in rural or garden settings, while sleek concrete blocks suit modern designs. Gabion walls offer a raw, rugged style perfect for coastal or industrial themes. Think about how the wall will fit into your outdoor space. Will it be a feature, or blend into the background? Choosing the right style ensures the wall adds value, not just function.

Council Regulations In NZ

Always check your local council’s requirements before starting construction. In New Zealand, retaining wall regulations often require a building consent if the wall is over 1.5 metres high or supports additional weight, like a driveway. Some councils may also have specific rules about materials, drainage, and setback distances. Failing to get consent when needed can lead to legal issues or forced removal of the wall. When in doubt, talk to a licensed builder or contact your local council office to make sure everything is above board.

By understanding these five factors, soil, drainage, budget, style, and retaining wall regulations in NZ, you’ll be in a much better position to make the right choice for your home. Whether it’s a small DIY timber wall or a large engineered structure, proper planning leads to better performance and fewer headaches.

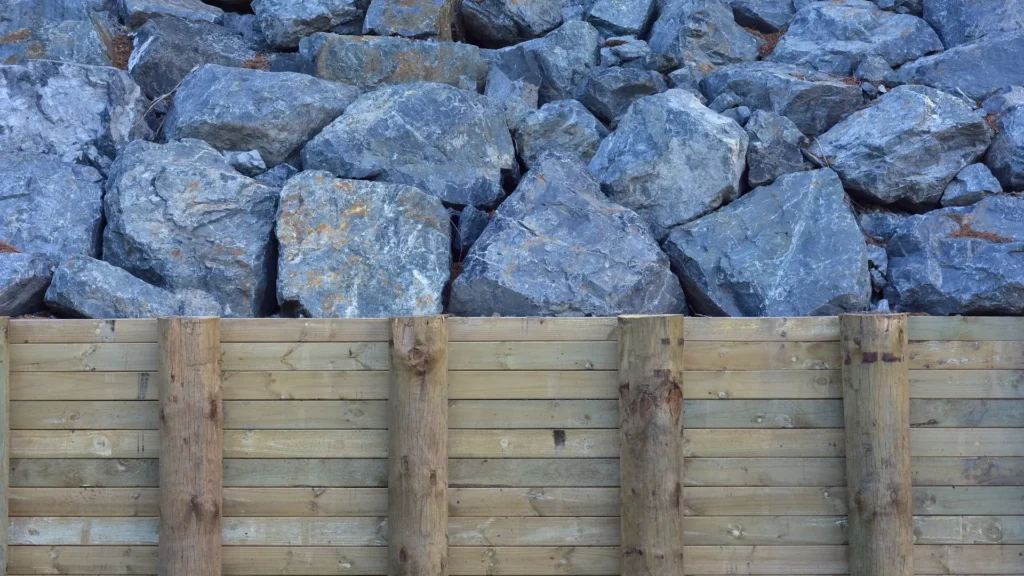

Timber Retaining Walls

Timber retaining walls are a popular choice for many homeowners across New Zealand. These walls use treated wooden planks or sleepers to hold back soil and prevent erosion, making them both functional and visually appealing. Because of their natural texture and finish, timber walls blend easily with most garden and outdoor settings, especially in residential areas where a rustic or organic feel is desired.

One of the biggest advantages of a timber retaining wall in NZ is affordability. Compared to concrete or stone alternatives, timber is cost-effective and relatively easy to install. This makes it ideal for smaller landscaping projects where budget is a major factor. Timber is also lightweight, which allows for faster construction and less labor cost. For property owners who enjoy DIY projects, wooden retaining walls NZ are one of the more beginner-friendly options.

However, timber retaining walls are not as durable as other types. Even when treated properly, wood is vulnerable to rot, insect damage, and moisture over time, especially in regions with high rainfall or poor drainage. Maintenance is key to extending the life of these walls. Without proper care, they typically last around 10 to 15 years, which is shorter than concrete or stone walls.

Timber walls are best suited for small garden beds, boundary edging, or low retaining structures that don’t bear a lot of weight. They work well in flat or gently sloping areas and can be customized with steps, seats, or planters. They are not ideal for steep slopes or large-scale soil retention where stronger materials are required.

In terms of cost, timber retaining wall NZ projects usually range from $200 to $300 per square metre, depending on the type of wood used, the height of the wall, and labor costs. For simple designs, the price can be kept low, but adding features like built-in seating or staining will increase the total cost.

If you’re looking for an affordable, attractive, and easy-to-install solution for your outdoor space, a wooden retaining wall NZ is a practical choice, as long as you’re prepared for regular maintenance and understand its limitations in high-stress environments.

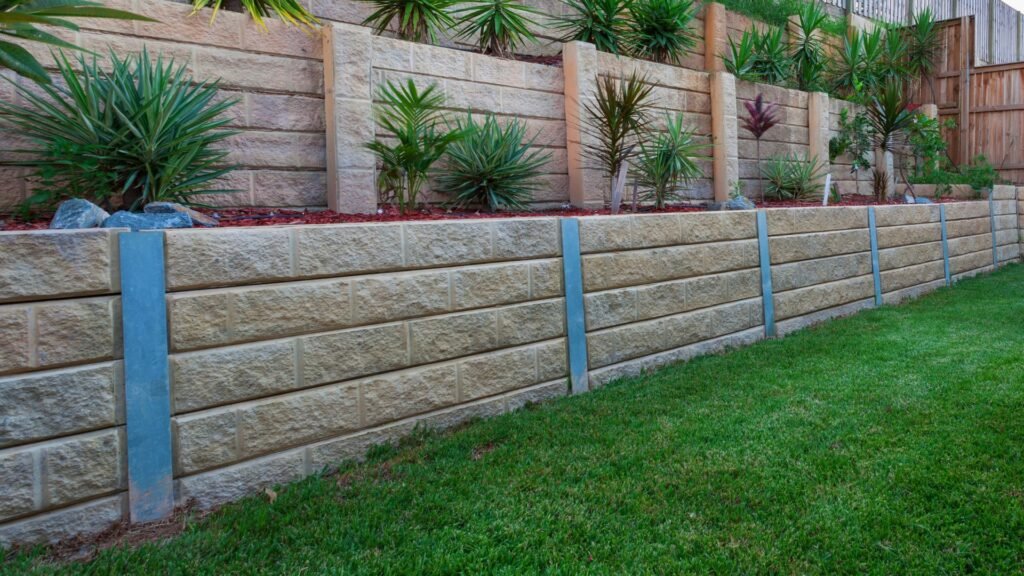

Concrete Block Retaining Walls

Concrete block retaining walls are a solid and long-lasting solution widely used across residential and commercial properties in New Zealand. Built using interlocking or stacked concrete blocks, these walls are designed to hold back soil while offering both strength and modern appeal. They are a popular choice for areas prone to heavy rain, unstable ground, or where structural stability is a top priority. Homeowners looking for a sleek, minimalist finish often choose concrete block walls for their clean lines and modern aesthetic.

Pros

One of the biggest advantages of concrete block retaining walls is their durability. Unlike timber, concrete won’t rot, warp, or get eaten by pests. It can withstand extreme weather, moisture, and heavy loads, making it ideal for sloped sections or high-pressure zones. Concrete blocks are also earthquake-resistant, which is especially important in many regions of New Zealand. Another key benefit is versatility. These walls can be built in various shapes and heights, and can either be left raw for an industrial look or rendered for a smooth, clean finish. They’re also compatible with reinforcement options, like steel bars and drainage systems, which can be added for extra support.

Cons

Despite their strengths, concrete block retaining walls come with a few drawbacks. They are typically more expensive than timber or keystone systems, both in terms of materials and labor. If you’re on a tight budget, this might not be the most cost-effective option. Concrete blocks also require experienced installation. Unlike timber walls, which can often be installed as a DIY project, concrete block walls usually need a professional builder or landscaper to ensure proper footing, alignment, and drainage. Poor installation can lead to structural failure over time, especially in high-stress zones.

Best For Modern Builds

Concrete block walls are a smart choice for modern and contemporary builds. Their sleek look complements minimalist architecture, straight garden lines, and outdoor entertaining areas. Many homeowners use them to create tiered gardens, front fences, or property boundaries that match the design of their home. When rendered or painted, they can blend seamlessly with existing structures, offering both function and curb appeal.

Surface Options: Rendered Or Raw

One of the appealing aspects of concrete retaining wall systems is the flexibility in appearance. You can leave the blocks exposed for a raw, textured finish, which works well with industrial or coastal themes. Or, you can render the surface with plaster or paint to match your home’s exterior. This customisation allows you to blend structure with style without sacrificing performance.

Cost Estimate Range

On average, a concrete retaining wall in NZ can cost anywhere from $400 to $600 per linear metre, depending on wall height, soil condition, access to the site, and whether additional reinforcement is needed. This price typically includes materials, labour, drainage, and basic finishing. If you opt for a rendered finish, the final cost may be higher due to extra materials and labour. While it’s a higher upfront investment, the long-term value and durability often make it worth the cost.

If you’re looking for a low-maintenance, long-lasting solution that suits New Zealand’s variable terrain and climate, a concrete retaining wall is one of the best options available. It offers a combination of strength, style, and safety that few other wall types can match. Whether you’re building on a slope or want to enhance your garden layout, concrete block walls provide both practical and visual impact. Always consult a licensed builder to ensure your wall meets local codes and is built to last.

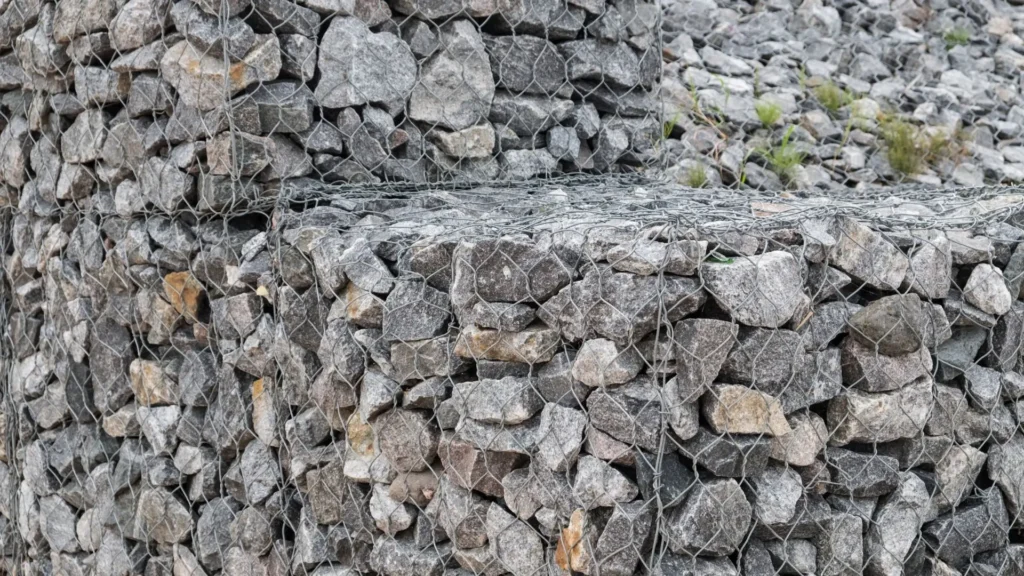

Gabion Retaining Walls

Gabion retaining walls are a practical and visually striking solution used across many New Zealand landscapes. These walls are made from large wire mesh baskets that are filled with rocks or stones, stacked and secured together to form a solid barrier. Originally used in civil engineering and flood control, gabion walls have become a popular choice for both residential and commercial properties in NZ due to their durability and distinct appearance.

One of the main advantages of a gabion wall in NZ is its strength. The combination of steel cages and heavy rocks creates a structure that can handle extreme pressure and shifting soils. This makes it a reliable option for sloped or erosion-prone areas. Gabion walls also offer excellent drainage. Because water can easily pass through the rock fill, there’s little risk of water buildup or pressure behind the wall, reducing the need for additional drainage solutions.

In terms of aesthetics, gabion retaining walls give off a natural, rugged look that blends well with outdoor environments. They’re especially popular in coastal or rural settings where native stone or river rocks can be used to match the surrounding landscape. When done right, a gabion wall can double as a strong support structure and a standout landscape feature.

Despite their benefits, gabion walls do have some drawbacks. They tend to be bulkier than other types of retaining walls and may not be suitable for small or tight spaces. They also require a flat foundation and careful placement of each cage and rock to ensure long-term stability. For urban properties with limited room, other options like concrete or timber may be more practical.

In terms of cost, rock basket retaining walls in NZ can range widely depending on size, material, and labor. On average, homeowners can expect to pay between $400 and $700 per linear metre, especially if high-quality rock or custom shapes are used. DIY installation can lower costs, but it’s essential to follow structural guidelines for safety and longevity.

If you’re looking for a durable, low-maintenance retaining wall with great drainage and a natural appearance, a gabion wall is worth considering, especially for properties with space to spare and exposure to heavy rainfall or erosion.

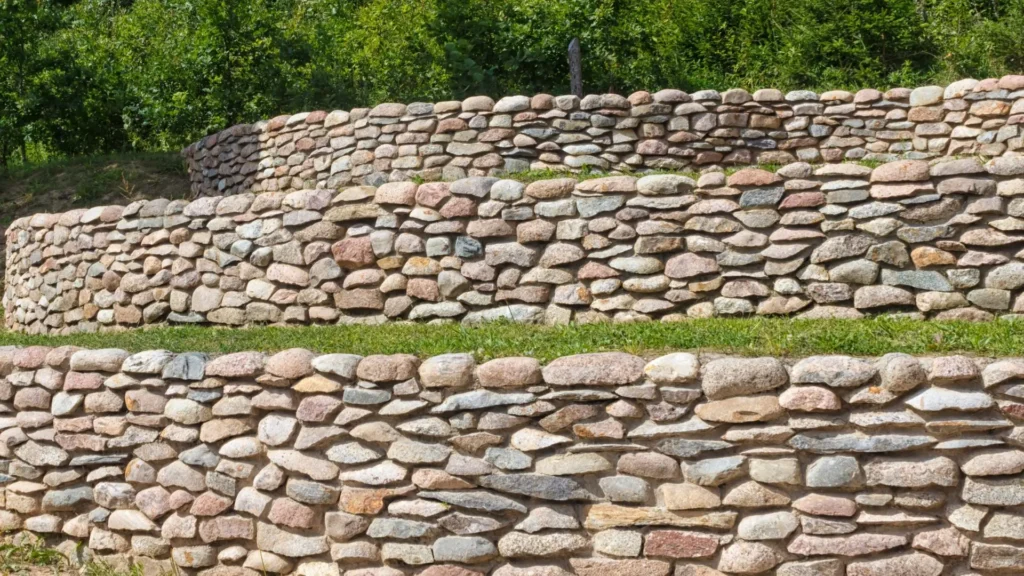

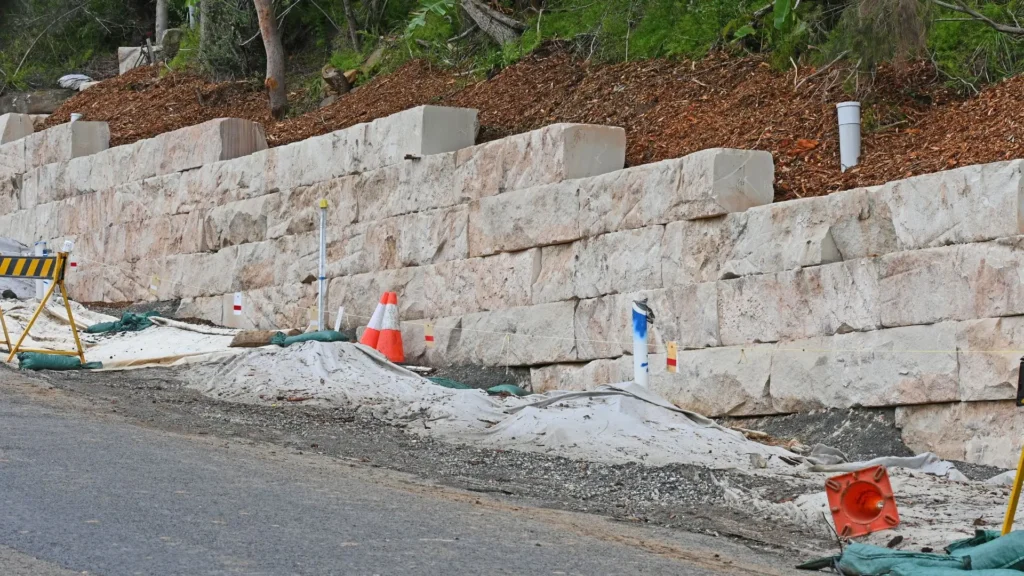

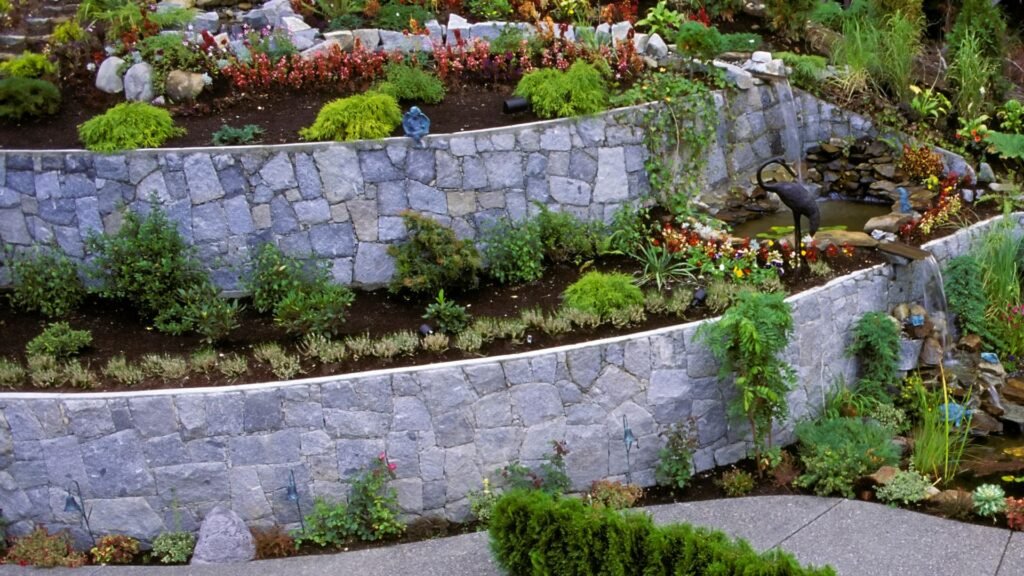

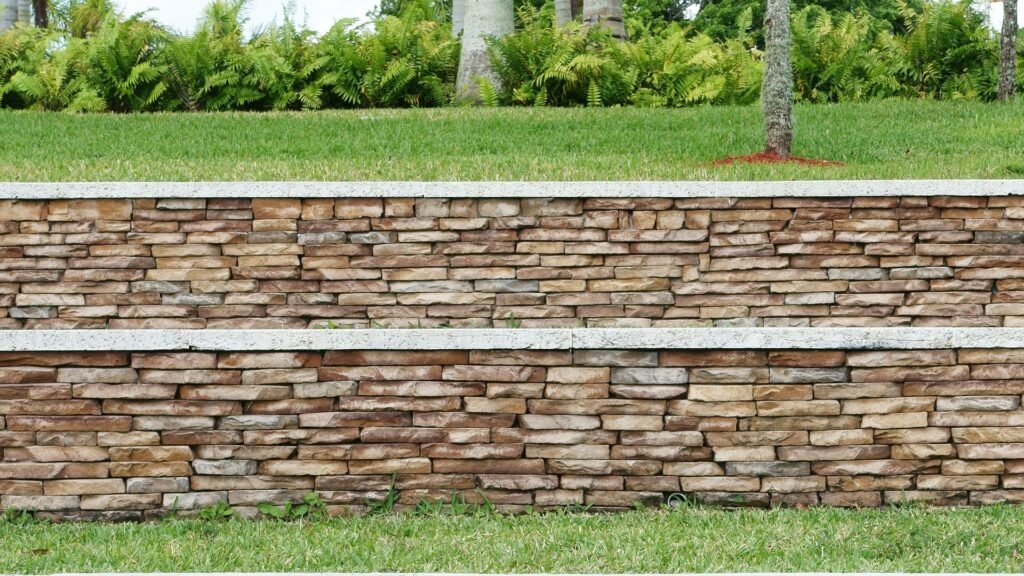

Stone Retaining Walls

Stone retaining walls in NZ offer a timeless, natural look that blends seamlessly with the local environment. Built using natural stone stacked manually, these walls are a popular choice for homeowners who want to enhance the visual appeal of their landscape while also adding functional support to sloped or elevated areas. Unlike manufactured options, natural stone walls have an organic appearance that adds character and charm, especially when paired with native plants and traditional garden designs.

The main advantage of choosing a stone retaining wall is its aesthetic value. These walls look beautiful and age gracefully over time, making them an ideal fit for heritage-style homes, classic gardens, and rural properties across New Zealand. The natural texture and color variations of the stones create a visually rich structure that can increase the perceived value of your outdoor space. In addition, natural stone is incredibly durable when built correctly and can last for several decades with minimal maintenance.

However, there are some downsides to consider. Constructing a natural stone wall is labour-intensive and requires skilled craftsmanship. Since each stone must be selected, shaped, and placed by hand, the process takes more time and effort compared to pre-formed systems like concrete blocks or timber. This complexity also makes stone retaining walls one of the more expensive options on the market. You’ll typically need to factor in both the material cost and the higher labour fees associated with professional installation.

When it comes to cost, a stone retaining wall in NZ can range anywhere from $600 to over $1000 per metre, depending on the type of stone used, wall height, and site accessibility. Despite the higher upfront cost, many homeowners see it as a long-term investment due to the wall’s durability and the added visual appeal it brings to the property.

If you want a retaining wall that complements your garden’s natural surroundings and adds a sense of permanence, a natural stone wall is worth considering. It not only supports the landscape but also becomes a standout feature in your outdoor design.

Whether you’re planning a full garden makeover or need structural support on a slope, a stone retaining wall NZ solution could offer the perfect blend of strength and style. If you’re aiming for a more rustic and enduring finish, a natural stone wall NZ installation is hard to beat.

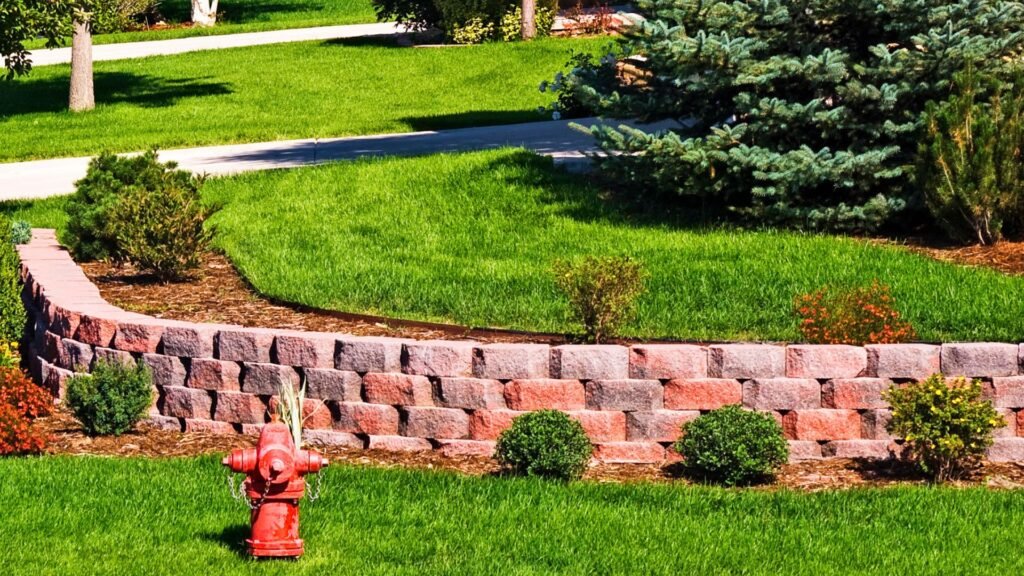

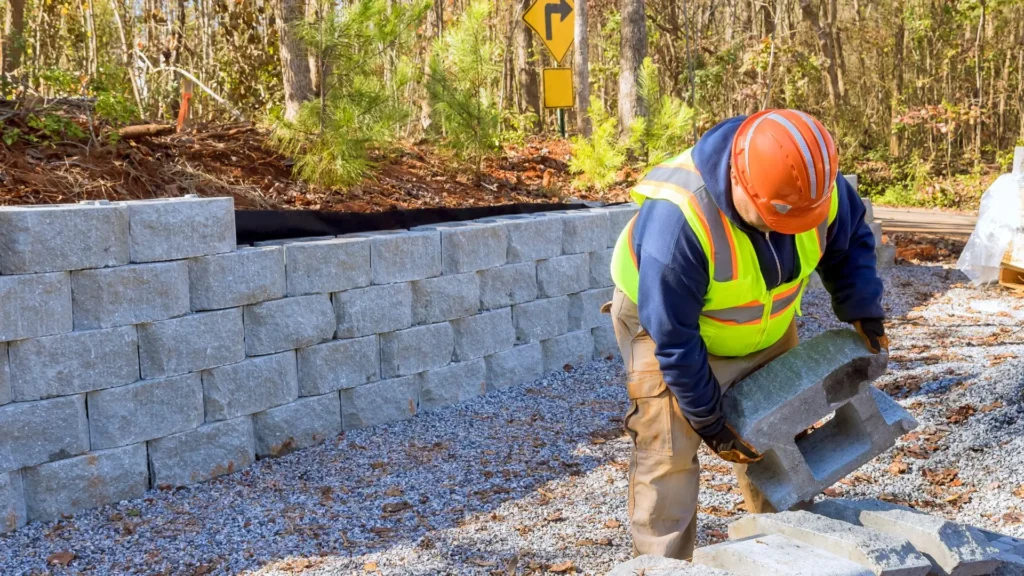

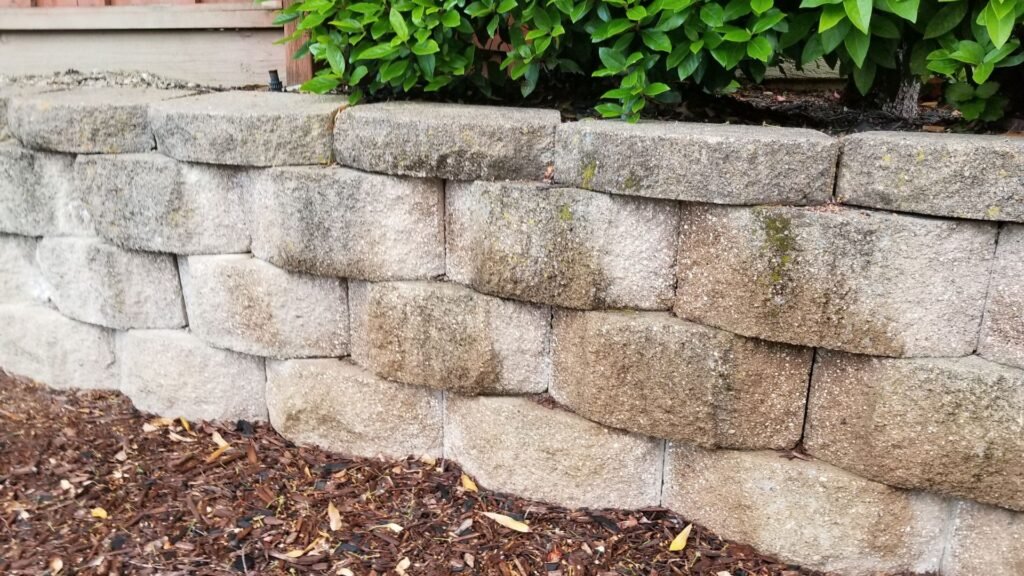

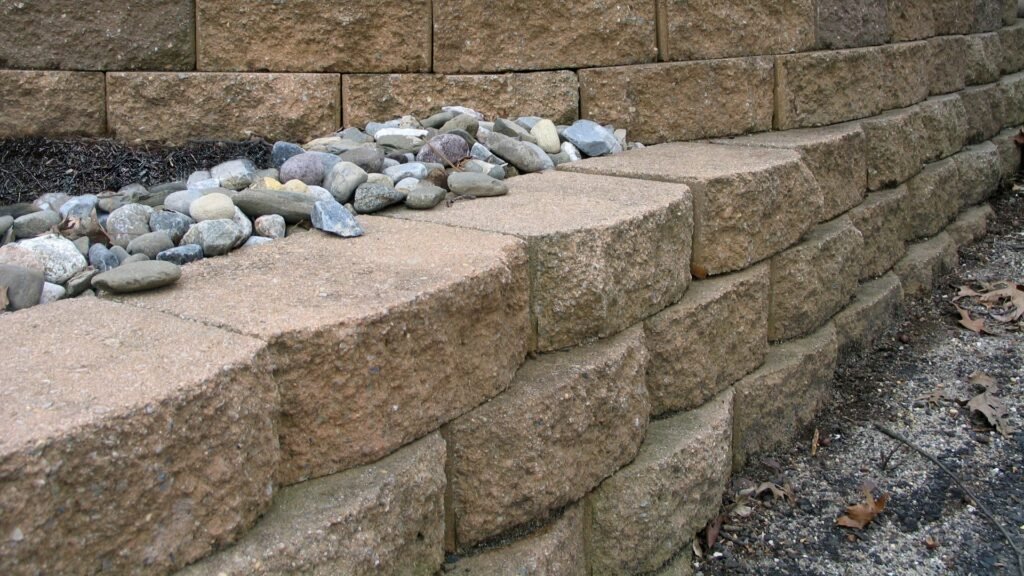

Keystone/Interlocking Block Walls

Keystone or interlocking block walls are one of the most popular retaining wall types in New Zealand. These walls are built using modular blocks that lock together without the need for mortar or concrete in between. Each block is shaped to fit tightly with the next, creating a strong and stable structure. This system allows for a clean, uniform look that suits both modern homes and commercial properties.

One of the biggest advantages of a keystone retaining wall in NZ is how user-friendly it is. These blocks are often designed with DIY installation in mind. Homeowners can build small to medium-sized walls without hiring a professional, which can save on labour costs. The blocks are also relatively lightweight compared to poured concrete or natural stone, making them easier to handle during construction. With the right tools and a solid base, many people can complete a project over a weekend.

Another key benefit is the fast installation process. Interlocking blocks are manufactured to fit together in a repeatable pattern, which speeds up construction. Since there’s no need to wait for mortar to cure, the wall can be completed much faster than traditional masonry options. This makes it ideal for time-sensitive landscaping projects.

However, interlocking block walls do have a few limitations. The design flexibility is lower compared to stone or timber walls. While you can create curves or tiered sections, most systems are better suited for straight or gently curved walls. If your space requires highly custom shapes or complex angles, this type may not be the best fit.

Keystone retaining walls are widely used in both residential and commercial settings across NZ. In backyards, they’re perfect for raised garden beds, boundary edges, and levelled sections. In commercial environments, you’ll often see them used in carparks, public pathways, and landscaped areas that need soil retention without compromising aesthetics.

In terms of cost, a keystone or interlocking block wall in NZ typically ranges between $300 and $600 per linear metre. Pricing depends on the block style, wall height, and whether you choose to hire a professional. While the material itself might be pricier than timber, the savings on labour and maintenance can make it a smart long-term choice.

If you’re looking for a retaining wall that balances durability, ease of installation, and a tidy modern look, a keystone retaining wall in NZ is worth considering. It’s especially ideal for homeowners who want a reliable DIY option without compromising on strength or structure.

Crib Walls

Crib walls are a reliable and widely used retaining wall type in New Zealand, especially for properties that need to manage heavy soil loads or steep slopes. These walls are built using interlocking timber or concrete “cribs” that form a hollow framework. The empty spaces are then filled with gravel or crushed stone to create a solid structure that allows for natural drainage. This method not only reinforces the wall’s strength but also prevents water buildup, which can cause pressure and damage over time.

One of the key advantages of crib walls is their excellent drainage capability. Thanks to the open-cell design, water can easily filter through the gravel without accumulating behind the wall. This reduces the risk of erosion or collapse, making crib walls a smart option in areas with heavy rainfall or shifting soil. They also provide long-term structural stability, especially when built from concrete. Timber versions are available and more affordable, but concrete crib walls last longer and require less maintenance in the long run.

Crib walls are not ideal for quick or DIY builds. They require careful planning and a skilled installer to ensure proper alignment and fill. The installation process involves excavation, leveling, assembling the crib units, and filling them with the correct type of gravel. While effective, the materials and labour make them bulkier and costlier than simpler alternatives like timber or keystone walls.

These walls are best suited for large-scale support work, such as retaining steep slopes, supporting driveways, or managing soil on uneven sections of land. They are commonly used in commercial or civil engineering projects but can also be seen in residential properties where serious earth retention is needed.

In terms of cost, expect to pay between $400 to $800 per metre for a concrete crib retaining wall in NZ. The final price depends on height, material, access to the site, and labour.

If you’re looking for a sturdy, well-draining solution that can handle pressure and stand the test of time, a crib wall might be the right choice. Just make sure to hire experienced contractors and follow local council guidelines.

Comparing The Types Side-By-Side

Choosing the right retaining wall for your property in New Zealand depends on more than just appearance. You need to weigh durability, cost, ease of installation, and how well the wall suits your space. Below is a simple breakdown of the most common retaining wall types in NZ, helping you compare them side-by-side and make a smart, informed choice.

Timber Retaining Walls

Timber is one of the most affordable and DIY-friendly options. It offers a natural look that blends well with gardens and outdoor spaces. While its durability is considered medium, lasting around 10 to 15 years with proper treatment, it’s best for smaller, non-structural uses like garden beds or low retaining walls. If you’re working with a limited budget and want to install it yourself, timber is a great place to start.

Concrete Retaining Walls

Concrete walls are built for strength. With high durability and resistance to soil pressure, they’re ideal for structural needs such as holding back large amounts of soil or supporting sloped terrain. They also offer a modern appearance that suits contemporary homes. While not usually suited for DIY due to their weight and construction complexity, concrete walls are worth the investment for long-term stability.

Gabion Retaining Walls

Gabion walls use wire cages filled with rocks and are highly effective on sloped properties where drainage is a concern. They have a rustic, raw look that fits natural landscapes and rural areas. Their durability is excellent, and although they can be installed by homeowners with basic skills, the cost can rise quickly due to the need for quality materials and labor. Gabion walls work well in areas with poor drainage and where soil erosion is a risk.

Stone Retaining Walls

Stone walls offer a timeless, classic look that enhances the beauty of any outdoor space. They are extremely durable and can last decades with little maintenance. However, they are also the most expensive and labor-intensive to build. Because of their weight and the precision required, they are not ideal for DIY projects. Stone is best used when appearance is a priority, especially in heritage homes or as a centerpiece in landscaped gardens.

Keystone Retaining Walls

Keystone or interlocking block walls are a popular choice for homeowners who want a balance between structure and style. They provide a clean, modern finish and are relatively simple to install, making them a good DIY option. These walls offer medium durability and are often used for small to medium-sized retaining needs. They’re practical for backyard walls, raised beds, and decorative borders.

Crib Retaining Walls

Crib walls are made from interlocking concrete or timber structures filled with gravel. They’re designed for heavy-duty use and are extremely strong and stable. These walls handle large, load-bearing applications and work well on commercial or steep sites. While highly durable, they require professional installation due to their complexity and weight. Crib walls are best when structural support is critical, such as on sloping driveways or large-scale landscaping projects.

When comparing your options, think beyond looks. Ask yourself what the wall needs to hold, how long you want it to last, and whether you’re doing it yourself or hiring a contractor. The best choice will meet your functional needs while fitting your budget and aesthetic preferences.

Do You Need Council Consent In NZ?

Building a retaining wall in New Zealand isn’t always as simple as stacking materials and digging into the soil. Before you get started, it’s crucial to understand when you need council consent. Not following the proper steps can lead to fines, delays, or even having to tear down your wall. Here’s what you need to know about retaining wall consent in NZ.

When You Need Building Consent

In most cases, if your retaining wall is over 1.5 metres high, you’ll need building consent from your local council. This rule applies whether the wall is made of timber, concrete, stone, or gabion. The same applies if your wall is holding back any additional load, such as a driveway, building, or heavy sloped earth. Even walls under 1.5 metres can require approval if they support something else or if the site conditions pose risks like erosion or flooding.

Always measure from the base of the wall’s footing, not just the visible part above ground. It’s common for homeowners to overlook this detail and assume their wall is under the height limit when it’s not.

Key Regional Council Guidelines

Each region in New Zealand may have slightly different building rules, so it’s important to check with your local council before starting your project. For example:

• Auckland Council may require a consent for walls under 1.5m if they’re near boundaries or public areas.
• Christchurch City Council has specific soil and stability guidelines because of seismic activity.
• Wellington Council focuses on retaining walls near slopes and requires engineered solutions for certain soil types.

Visit your council’s website or speak to a building officer directly. This ensures you follow the right process for your location and avoid unnecessary setbacks.

Importance Of Checking Before Building

Many homeowners assume small walls are exempt from consent. But failing to check could cost you later. If you build without consent and an issue arises, insurance might not cover damage, and you may face enforcement from the council. Worse, you might need to hire an engineer after the fact, doubling your costs.

Even if your wall doesn’t need consent, councils still expect you to meet safety and durability standards. That means proper drainage, footing depth, and structural integrity must be part of your design.

When To Hire An Engineer

If your retaining wall is over 1.5m, holding extra load, or being built in an area with poor soil or slope instability, it’s best to involve a chartered professional engineer. Engineers can:

• Assess soil conditions
• Design appropriate reinforcement
• Ensure the wall meets NZ building code
• Provide the necessary documentation for council approval

Their input helps future-proof your build and protect your investment, especially in earthquake-prone zones.

Always start your retaining wall project by searching “retaining wall consent NZ” on your council’s website or giving them a call. Understanding the building rules in NZ before digging a single hole can save you time, money, and future legal problems.

DIY Vs Hiring A Pro In NZ

Building a retaining wall can seem like a simple weekend project, but not all wall types or situations are suitable for DIY. In New Zealand, where soil conditions, weather, and slope stability can vary greatly, it’s important to know when to roll up your sleeves and when to call in the experts. Understanding the difference between DIY and professional builds will help you make the right decision for your property and budget.

DIY retaining walls are most practical for low, non-load-bearing structures. If you’re working with timber sleepers or interlocking keystone blocks, and the wall is under 1.5 meters high, you can likely handle the job yourself, especially if you have basic tools and construction experience. These materials are user-friendly, widely available, and come with detailed installation guides. Many Kiwi homeowners enjoy tackling garden walls or raised beds as DIY projects, saving money in the process. Just make sure your wall includes proper drainage, and always check your local council rules before you start.

On the other hand, some retaining walls require the skill and knowledge of a licensed professional. If you’re dealing with a high wall, heavy loads, or tricky soil conditions like clay or sand, hiring a retaining wall builder in NZ is the safer choice. Complex wall systems, such as concrete blocks, crib walls, or gabion baskets, need precise engineering and drainage planning. Mistakes in construction can lead to wall failure, water issues, or costly repairs down the line.

Labour costs for hiring a contractor vary based on the type of wall, access to the site, and location. On average, professional labour in NZ can range from $60 to $120 per hour. For small to medium-sized retaining walls, expect total labour costs to fall between $1,500 and $5,000, depending on complexity. Full-service landscaping companies may charge more but often include design, excavation, material sourcing, and council compliance.

If you decide to go the professional route, finding a qualified builder is essential. Start by searching online for “retaining wall builder NZ” to compare local providers. Look for verified reviews, before-and-after project photos, and any relevant certifications. You can also check the Licensed Building Practitioners (LBP) register on the New Zealand Government website to confirm credentials. Don’t hesitate to request quotes from at least three contractors so you can compare pricing and timelines.

Whether you’re planning a DIY retaining wall NZ homeowners can be proud of, or you’re investing in professional support, always choose the option that balances safety, cost, and long-term performance. Making the right call upfront can save you thousands later.

Not sure which retaining wall is right for your property? Visit us to explore your options and get expert advice tailored for New Zealand conditions.

FAQs: About Retaining Wall Types In NZ

Conclusion

Choosing the right type of retaining wall in NZ is more than a design decision—it’s about ensuring long-term stability, drainage, and functionality for your outdoor space. With options ranging from timber and concrete to stone and gabion, each type has its own benefits depending on your terrain, budget, and property needs. Take a moment to assess your own space: Is the slope steep? Do you have drainage issues? Are you after a modern or natural look? These questions will guide your decision. While some walls may be manageable as DIY projects, complex builds or those requiring consent are best handled by professionals who understand New Zealand’s building codes and soil conditions. Looking for help choosing the right retaining wall for your NZ property? Reach out to a local expert today.
